Energy-Dissipating Impact Bed
Company Email: hbhezhong@163.com
Sale Email: siyongfei@hbhzgs.com
Tel: +86 4001033112
Whatsapp: +86 17352998802
Installed beneath the transfer points of belt conveyors, this product serves as an upgraded alternative to traditional impact idlers. Primarily designed to support and protect conveyor belts, it effectively absorbs the impact force of falling materials, preventing belt damage caused by material impact and extending the belt's service life.

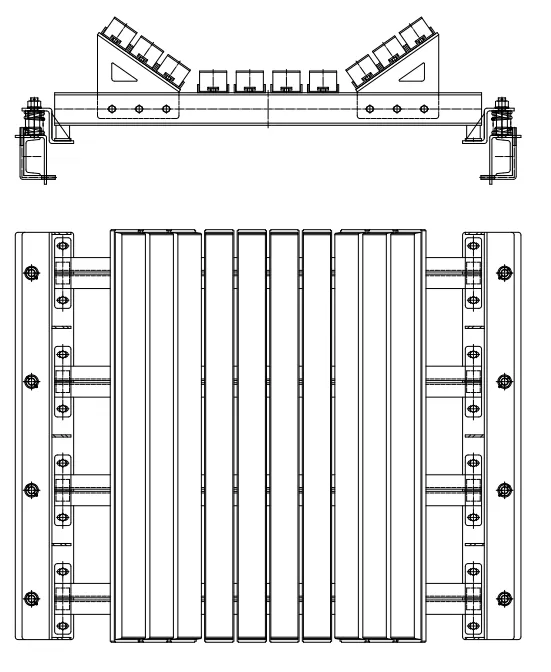

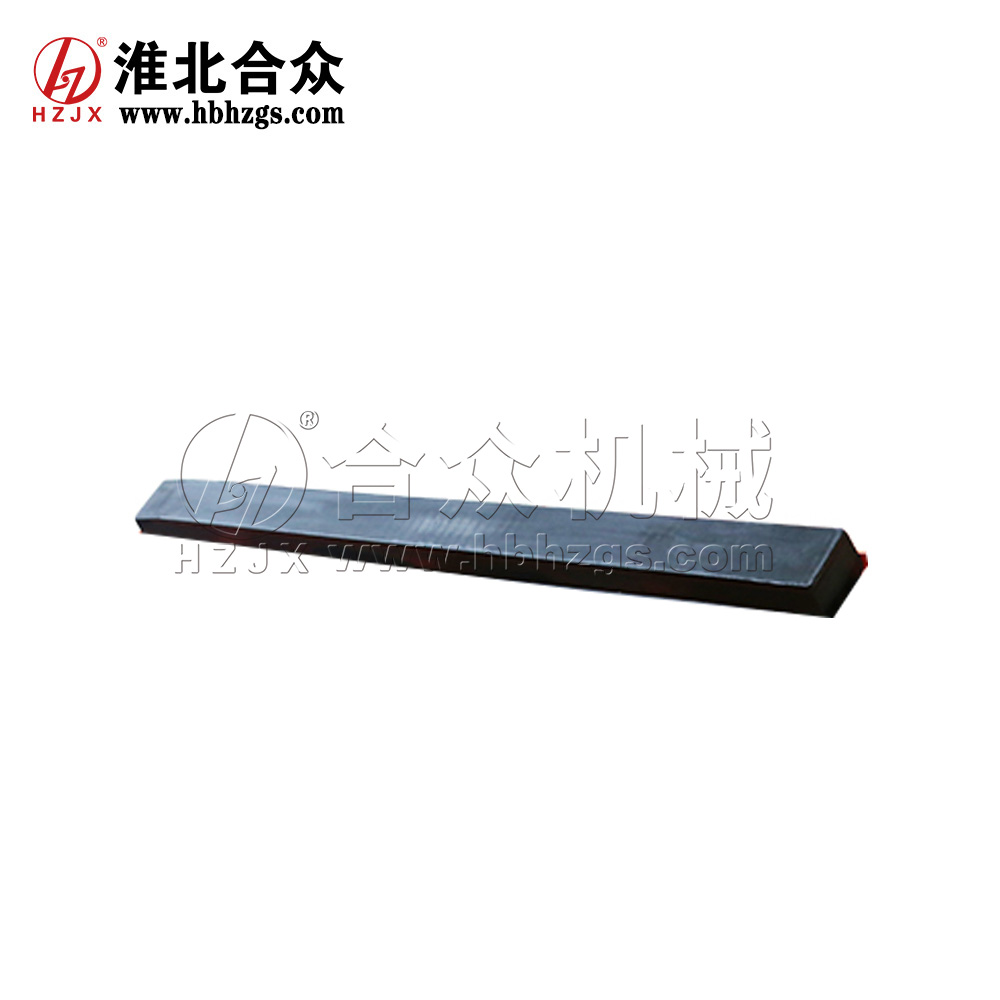

The impact bed consists of buffer sliders, metal support frames, and a secondary damping system. The buffer sliders are constructed from flame-retardant and anti-static ultra-high molecular weight polyethylene (UHMW-PE) nanocomposite material, combined with impact-absorbing rubber and metal reinforcement frames, making them suitable for both surface and underground coal mining environments.
The secondary damping system provides additional cushioning against the impact force of falling materials on the conveyor belt, offering enhanced belt protection.
| Energy-Dissipating Impact Bed | |||||
| Model | Belt Width | Belt Speed Range (m/s) | Material Handling Capacity | Frame Width (mm) | Product Weight (kg) |
| HZ-CXN-650 | 650 | / | / | / | / |
| HZ-CXN-800 | 800 | / | / | / | / |
| HZ-CXN-1000 | 1000 | 1.0-6.0 | 1800t/h | 1600 | 1200 241.38 1500 301.72 1800 362.07 2000 402.31 |
| HZ-CXN-1200 | 1200 | 1.0-6.0 | 2000t/h | 1810 | 1200 358.77 1500 448.46 1800 538.16 2000 597.95 |
| HZ-CXN-1400 | 1400 | 1.0-6.0 | 2500t/h | 2060 | 1200 374.47 1500 468.08 1800 561.71 2000 624.11 |
| HZ-CXN-1600 | 1600 | 1.0-6.0 | 3000t/h | 2260 | 1200 528.97 1500 661.21 1800 734.68 2000 816.31 |
| HZ-CXN-1800 | 1800 | 1.0-6.0 | 4000t/h | 2490 | 1200 688.67 1500 860.66 1800 955.56 2000 1061.72 |
| HZ-CXN-2000 | 2000 | 1.0-6.0 | 5000t/h | 2800 | 1200 868.81 1500 1085.23 1800 1302.21 2000 1446.66 |
| HZ-CXN-2200 | 2200 | 1.0-6.0 | 5500t/h | 3110 | 1200 1048.25 1500 1310.31 1800 1572.31 2000 1747.09 |
| Note: Special sizes can be customized upon request. | |||||
