Linear Return Belt Cleaner
Company Email: hbhezhong@163.com
Sale Email: siyongfei@hbhzgs.com
Tel: +86 4001033112
Whatsapp: +86 17352998802

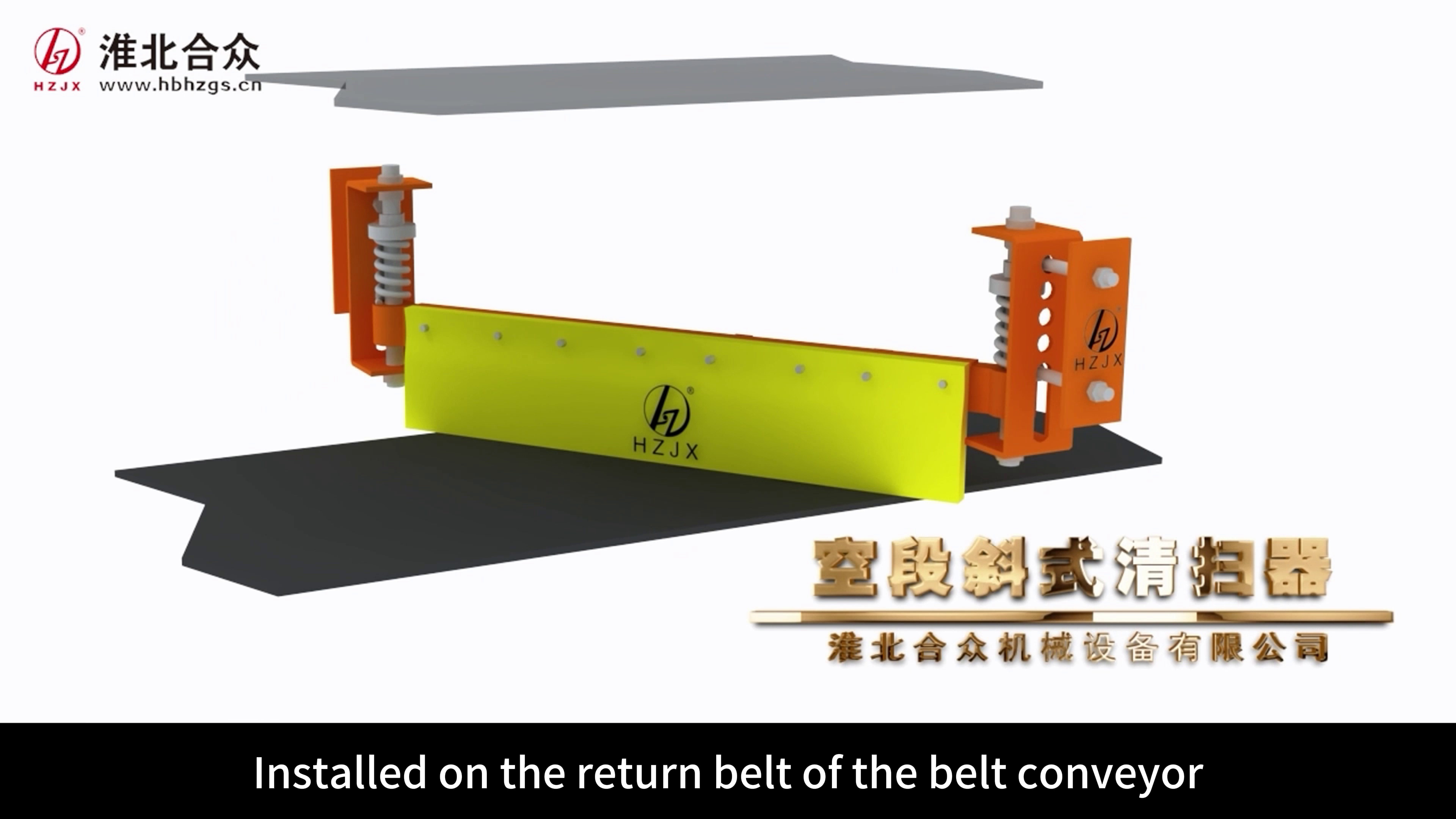

This cleaning device is designed for belt conveyors operating in confined spaces such as bi-directional systems or tunnels. It is installed on the upper surface of the return belt ahead of tail pulleys or bend pulleys.

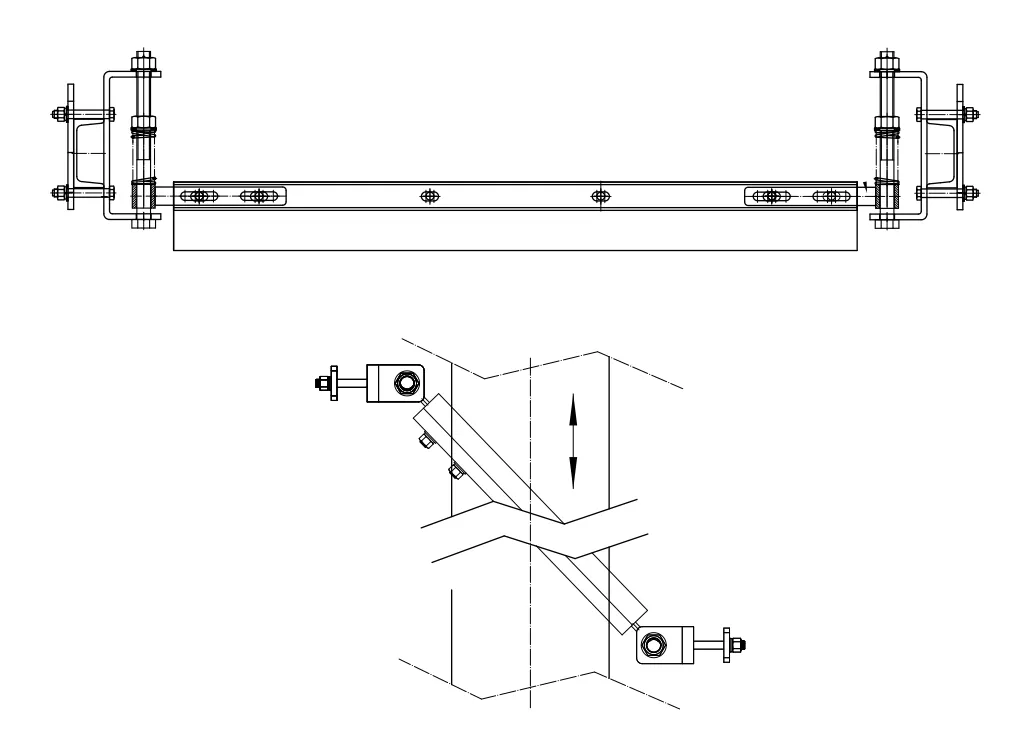

The linear-profile blade design eliminates the need for directional adjustment during installation. The angled clamping structure effectively directs cleared materials to the belt edges for easy removal.
| Linear Return Belt Cleaner | ||||||
| Model | Belt Width (mm) | Belt Speed Range (m/s) | Frame Width (mm) | Blade Width (mm) | Blade Height (mm) | Product Weight (kg) |
| HZ-CKXQ-650 | 650 | 1.0-6.0 | 950 | 900 | 55 | 22 |
| HZ-CKXQ-800 | 800 | 1.0-6.0 | 1150 | 1200 | 100 | 24 |
| HZ-CKXQ-1000 | 1000 | 1.0-6.0 | 1350 | 1500 | 110 | 27 |
| HZ-CKXQ-1200 | 1200 | 1.0-6.0 | 1600 | 1800 | 120 | 30 |
| HZ-CKXQ-1400 | 1400 | 1.0-6.0 | 1810 | 2100 | 130 | 47 |
| HZ-CKXQ-1600 | 1600 | 1.0-6.0 | 2060 | 2400 | 140 | 54 |
| HZ-CKXQ-1800 | 1800 | 1.0-6.0 | 2260 | 2700 | 160 | 66 |
| HZ-CKXQ-2000 | 2000 | 1.0-6.0 | 2490 | 3000 | 160 | 72 |
| HZ-CKXQ-2200 | 2200 | 1.0-6.0 | 2800 | 3300 | 180 | 82 |
| Note: Special sizes can be customized upon request. | ||||||

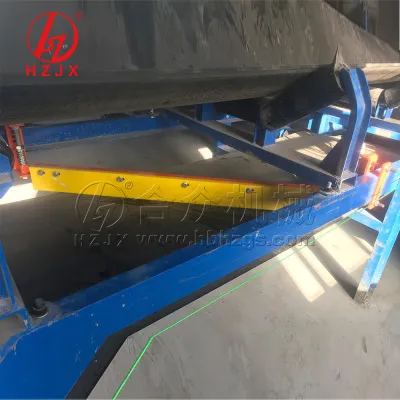

On-site Case Presentation
-
