Secondary Rubber-Alloy Belt Cleaner

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Information

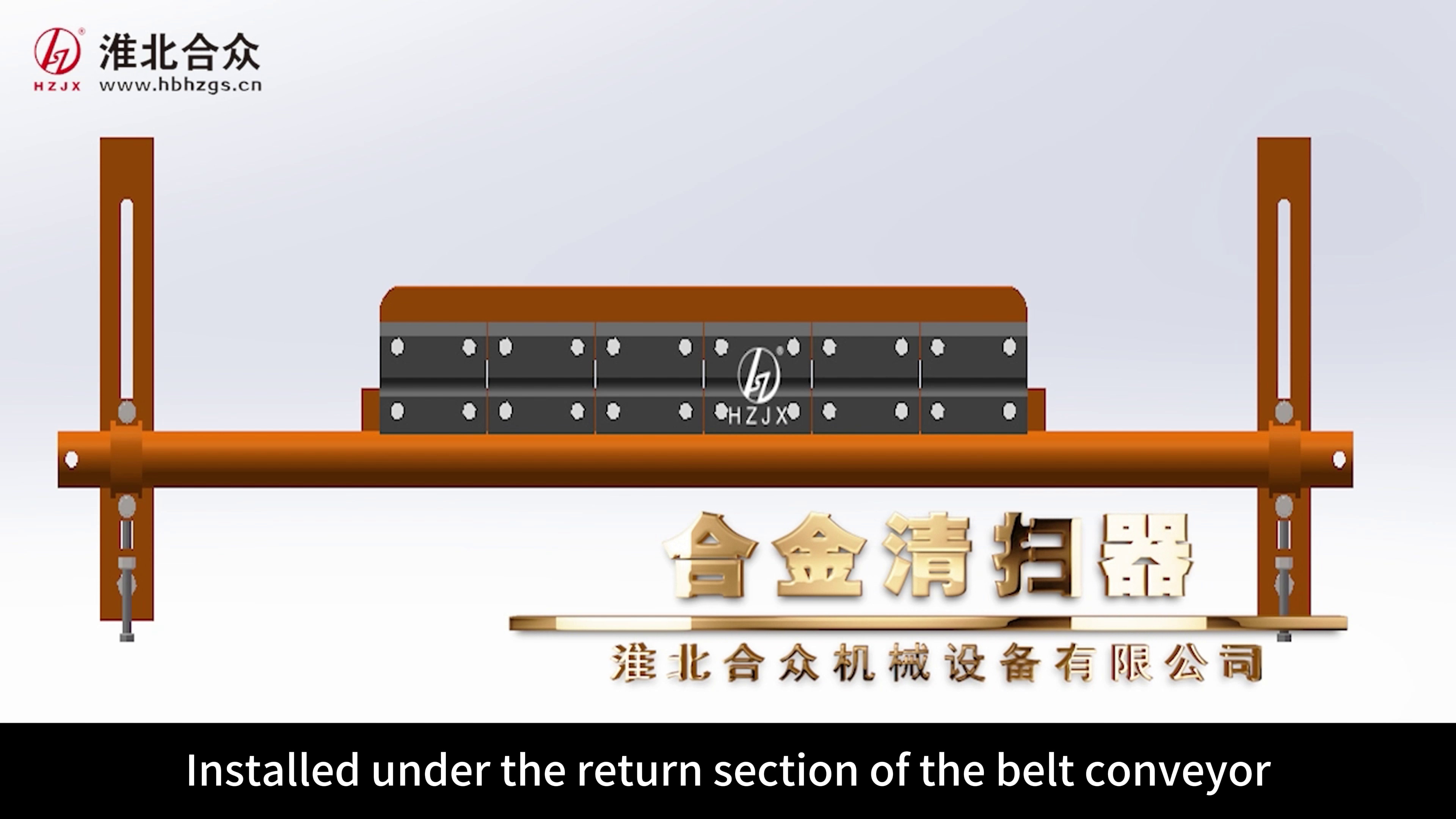

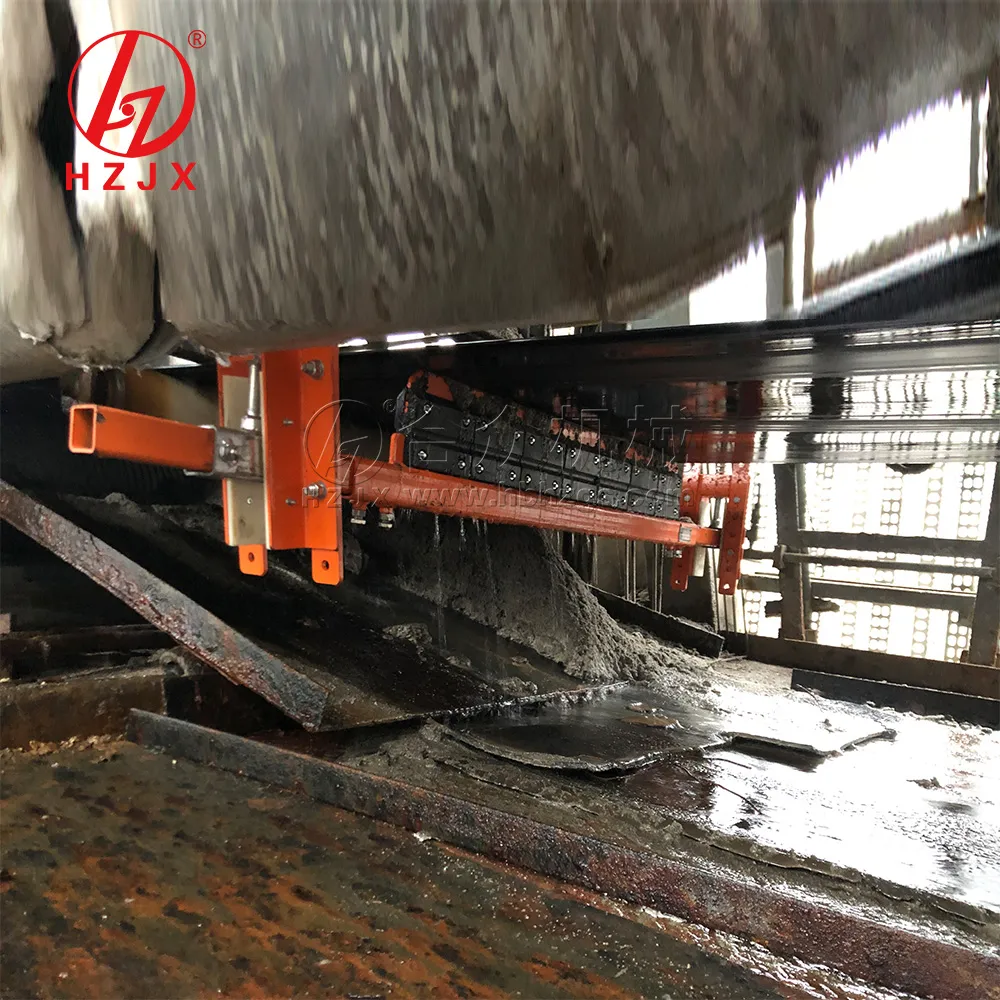

This cleaning device is designed for secondary cleaning of adhered materials on the underside of high-speed return belts in belt conveyor systems. It delivers excellent performance for materials with high moisture content and sticky sludge.

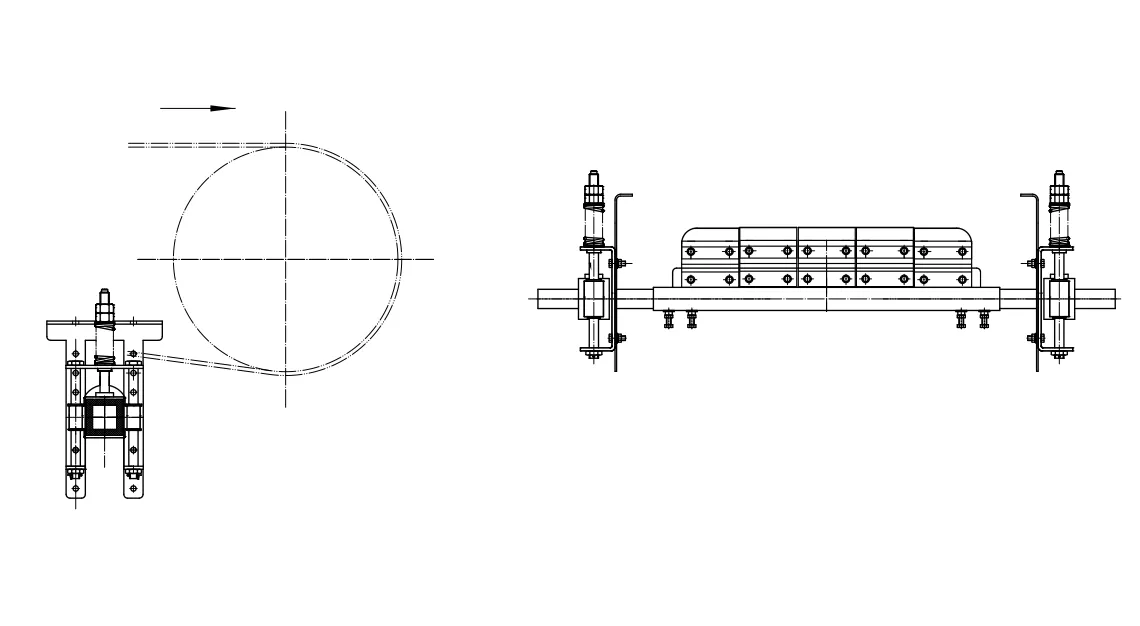

The blade employs a segmented alloy-rubber design, with each individual segment measuring 150mm in length. The blades are molded from natural rubber blocks and composite nano-materials containing tungsten carbide. The band-clamp tensioning structure allows for easy installation and adjustment by simply rotating the assembly on-site to the required direction.

Specification

Secondary Rubber-Alloy Belt Cleaner
Model	Belt Width (mm)	Belt Speed Range (m/s)	Frame Width (mm)	Blade Width (mm)	Blade Height (mm)	Product Weight (kg)
HZ-CXJQ-650	650	1.0-6.0	950	600	154	41
HZ-CXJQ-800	800	1.0-6.0	1150	750	154	45
HZ-CXJQ-1000	1000	1.0-6.0	1350	900	154	49
HZ-CXJQ-1200	1200	1.0-6.0	1600	1050	154	57
HZ-CXJQ-1400	1400	1.0-6.0	1810	1350	154	82
HZ-CXJQ-1600	1600	1.0-6.0	2060	1500	154	88
HZ-CXJQ-1800	1800	1.0-6.0	2260	1650	154	93
HZ-CXJQ-2000	2000	1.0-6.0	2490	1950	154	98
HZ-CXJQ-2200	2200	1.0-6.0	2800	2100	154	103
Note: Special sizes can be customized upon request.
