V-Plow Cleaner for Return Belt
Company Email: hbhezhong@163.com
Sale Email: siyongfei@hbhzgs.com
Tel: +86 4001033112
Whatsapp: +86 17352998802

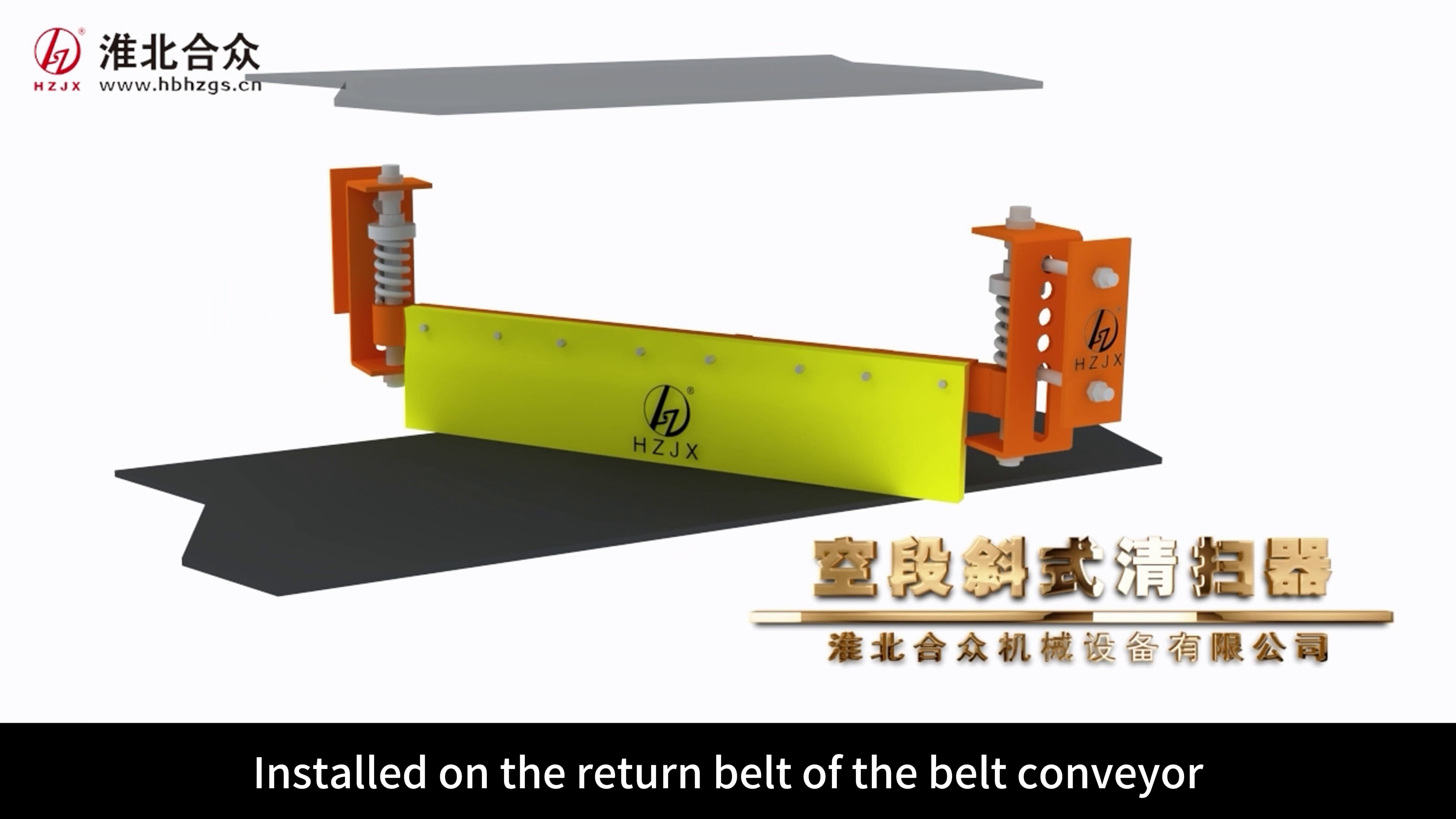

Installed on the upper surface of the return belt ahead of the tail pulley or bend pulley, this device prevents residual material from becoming trapped between the tail pulley and the conveyor belt, thereby avoiding damage to both or belt misalignment.
It features a reinforced, duckbill-style plow blade design that effectively scrapes off residual material.
| V-Plow Cleaner for Return Belt | ||||||
| Model | Belt Width (mm) | Belt Speed Range (m/s) | Frame Width (mm) | Blade Width (mm) | Blade Height (mm) | Product Weight (kg) |
| HZ-CVQC-650 | 650 | 1.0-6.0 | 950 | 170 | 125 | 45 |
| HZ-CVQC-800 | 800 | 1.0-6.0 | 1150 | 170 | 125 | 50 |
| HZ-CVQC-1000 | 1000 | 1.0-6.0 | 1350 | 170 | 125 | 53 |
| HZ-CVQC-1200 | 1200 | 1.0-6.0 | 1600 | 170 | 125 | 60 |
| HZ-CVQC-1400 | 1400 | 1.0-6.0 | 1810 | 170 | 125 | 68 |
| HZ-CVQC-1600 | 1600 | 1.0-6.0 | 2060 | 170 | 125 | 74 |
| HZ-CVQC-1800 | 1800 | 1.0-6.0 | 2260 | 170 | 125 | 111 |
| HZ-CVQC-2000 | 2000 | 1.0-6.0 | 2490 | 170 | 125 | 117 |
| HZ-CVQC-2200 | 2200 | 1.0-6.0 | 2800 | 170 | 125 | 121 |
| Note: Special sizes can be customized upon request. | ||||||

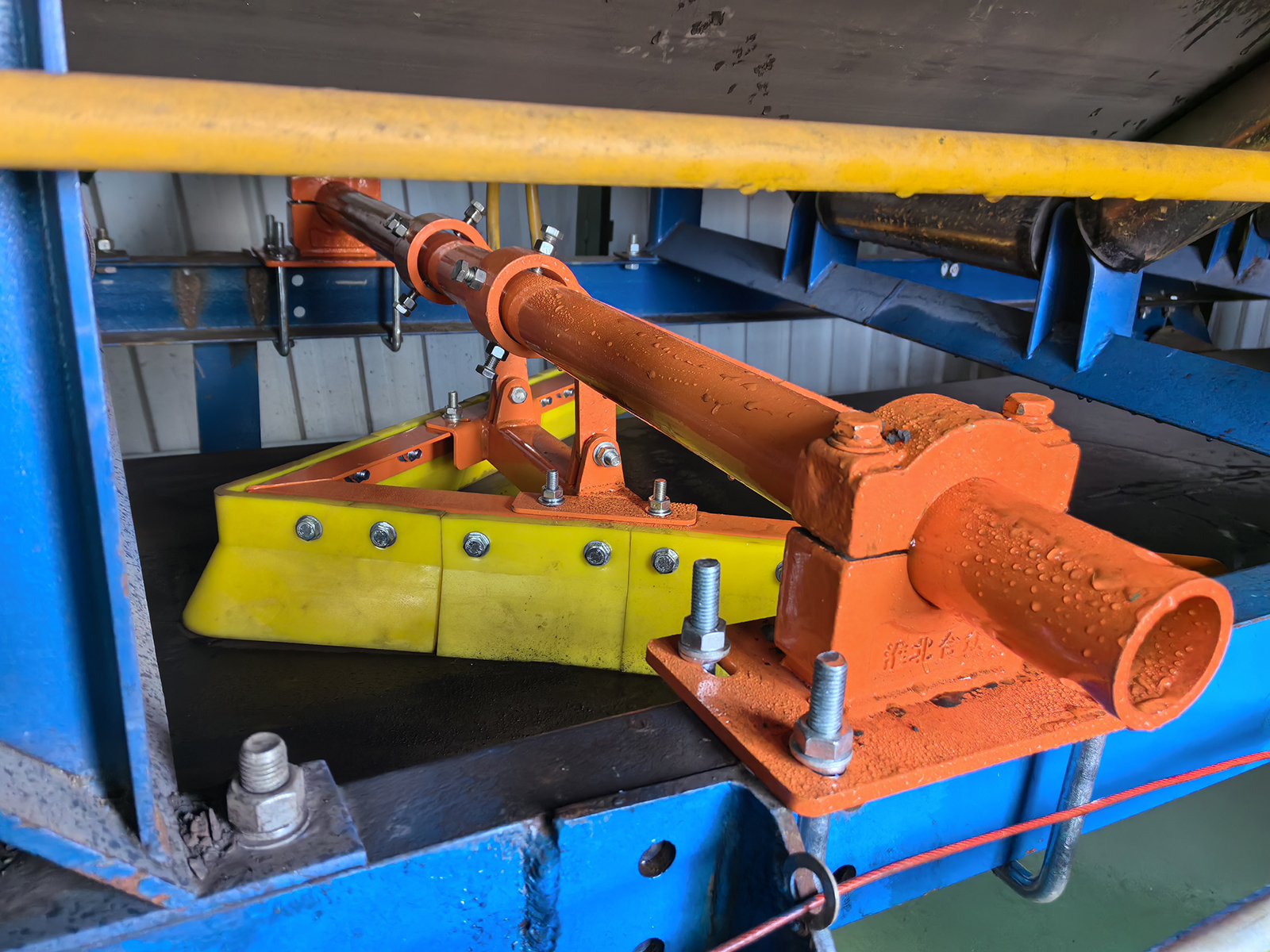

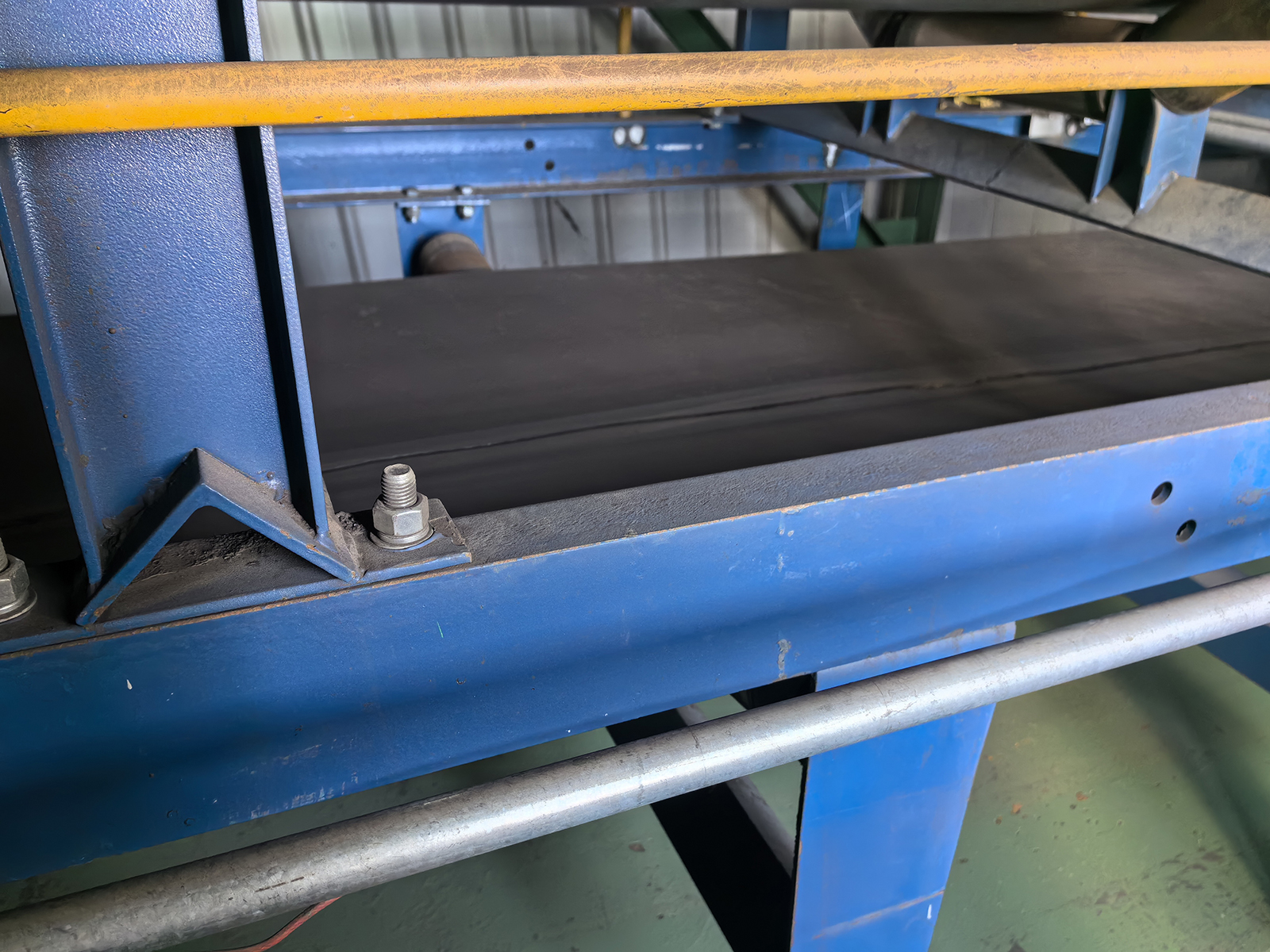

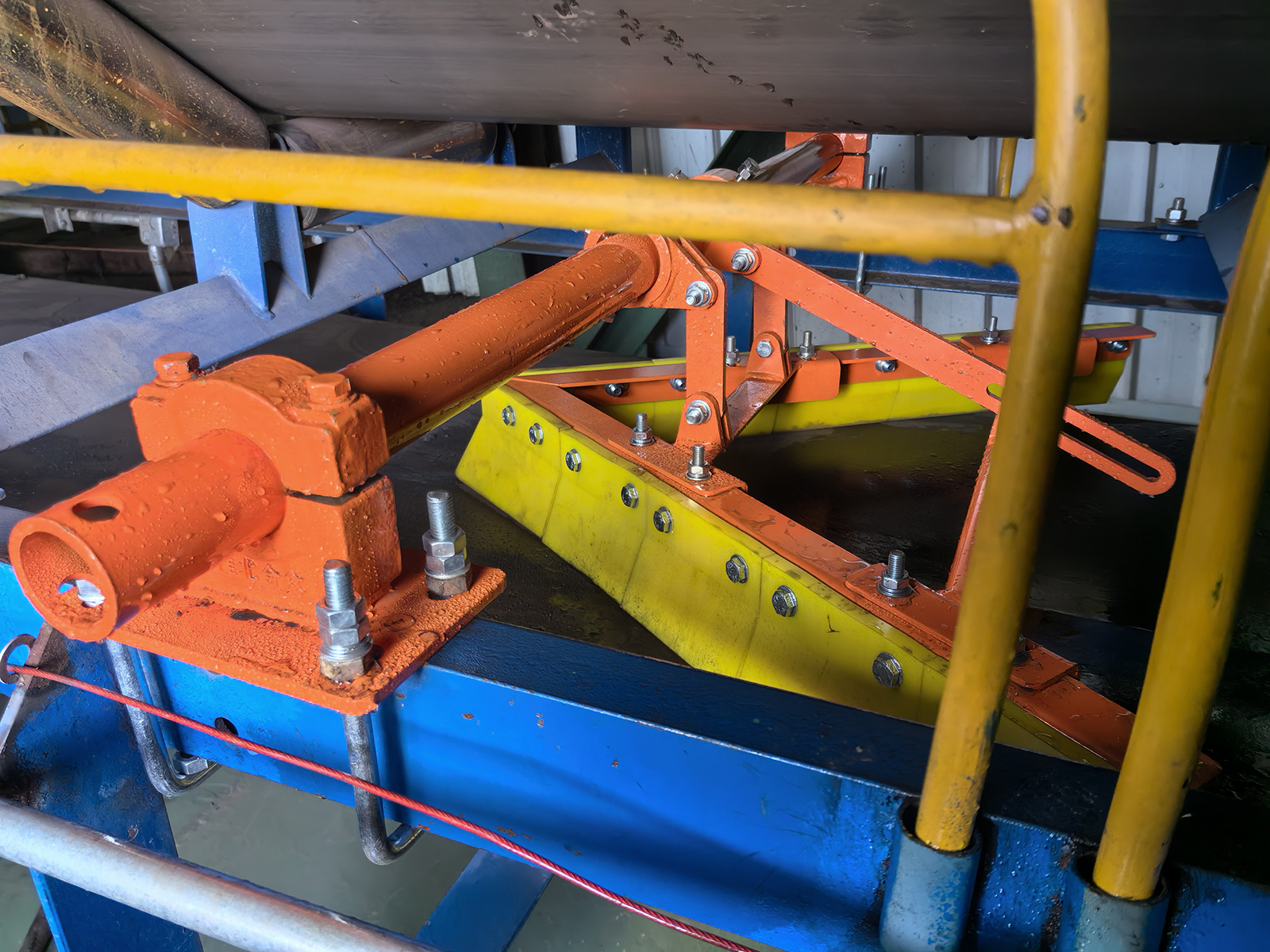

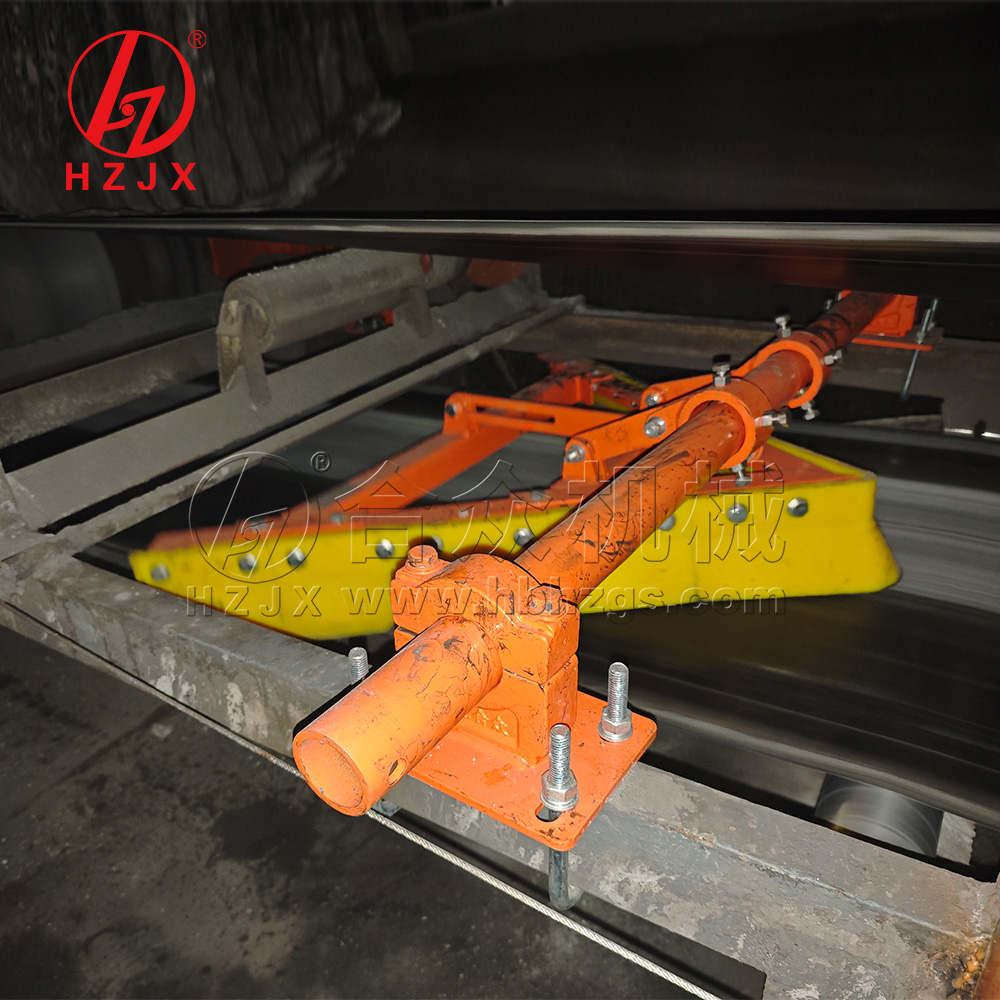

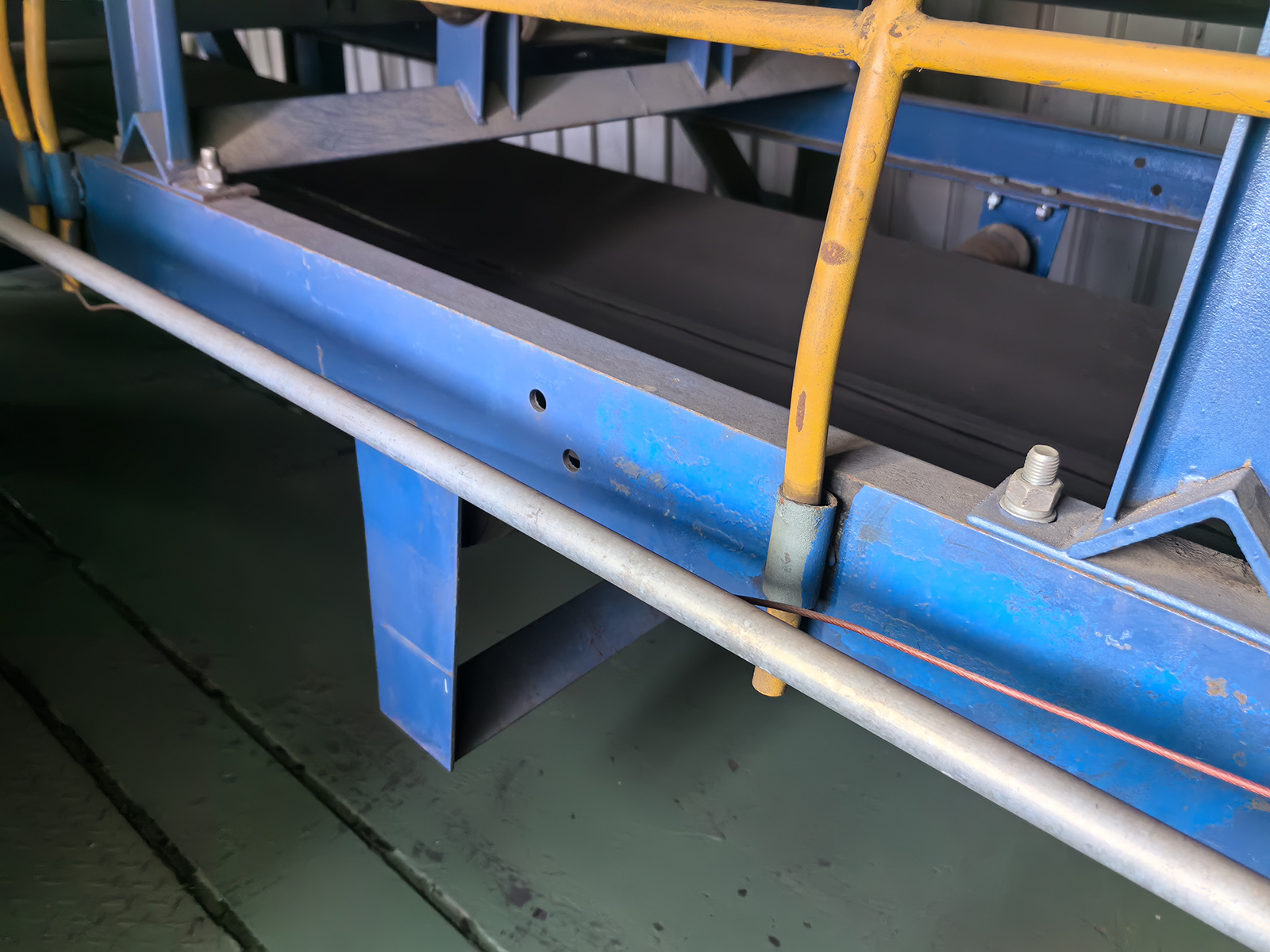

On-site Case Presentation
-
Before
-
After
-
Before
-
After
Workshop Real Shot Display
